Application
Corrosive, pure and contaminated media in chemical industries,
Pharmaceutic and petrochemical industries,
In metal processing, waste water treatment etc.
When Stainless steel is not sufficiently resistant
An alternative for expensive haste alloy, titanium alloy pumps
When anti-adhesive surfaces are important.
Pumping Liquid
- Strong corrosive liquids
- Aggressive, explosive and toxic liquids
- Volatile chemicals
- Flammable liquids
- Difficult-to-seal liquids
Economic and Reliable Design Feature
-Sealess design and free leakage
Without shaft seal and driving through by magnetic coupling, which avoid leakage.
-Compact structure
Close-coupled design, magnetic coupling connect to motor shaft end directly, without rolling bearing loss. High efficiency and low noise. Reduce installation space and easily assembly.
-Convenient maintenance
Pull-back construction, which allows easy on-site maintenance, no need to dis-assembly pipes,
-No magnetic eddy current heating
Spacer sleeve made of Carbon-fiber-reinforced plastic [CFRP],With high-strength mechanical property, free from the magnetic eddy current phenomenon.Inspection and maintenance work.

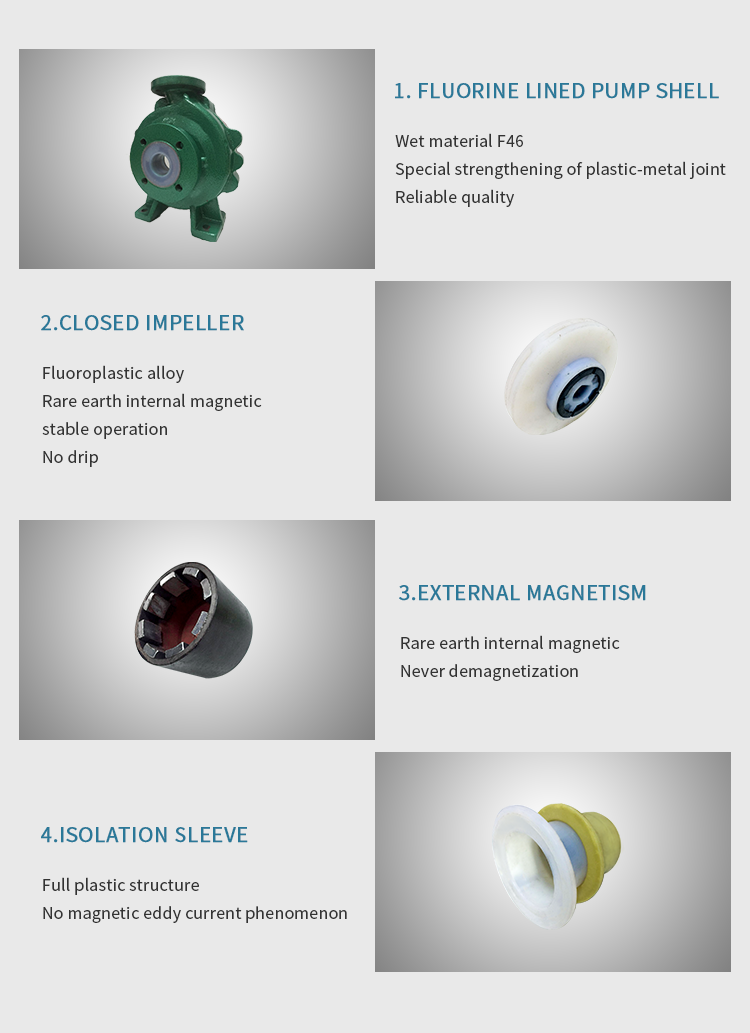

The Pump Housing
. Virgin Fluoroplastic
- Considerably easier and more reliable quality control
- No reduction in the permeation resistance.
- Pure pharmaceutical and fine chemical media: no contamination
. With ductile cast iron casing absorbs all the hydraulic and pipework-forces. According to DIN/ISO5199/Europump 1979 standard. Comparing to plastic pumps, no expansion joints are required. Flange with service-minded through holes to DIN; ANSI, BS; JIS. For flushing system and monitoring device as required, the draining nozzle will be offered.
Spacer sleeve made of Carbon-fiber-reinforced plastic [CFRP]
-The metal-free system does not induce any eddy currents and thus avoids unnecessary heat generation. Efficiency and operational reliability benefit from this. Even low flow rates or media near their boiling point can therefore be conveyed without the introduction of heat.
Closed Impeller
-Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values. The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates. Secured screw connection to the shaft to against loosening if the pump is started up in the wrong direction of rotation or in the case of back-flowing media
Bearing
-Pure SSIC bearing make a decisive contribution to operational reliability and the long service life of the pump. pure SSIC as a base material produces maximum
-dimensional stability. SSIC is extremely resistant to corrosion and abrasion
