CQ stainless steel magnetic pump

CQ sealsess stainless steel magnetic pump is a compact structure pump, which is designed especially for leakage, flammable, explosive liquid. It is easy for operation and cost low for maintenance.

PREVIOUS IMD Magnetic Centrifugal Pump

NEXT None

Application
Design Feature
Model and Parameter

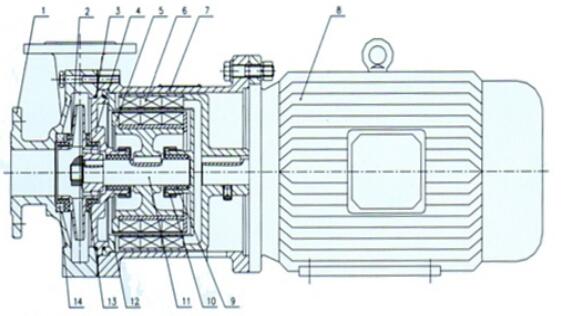

Material of Construction
Installation Drawing

Chemical

Pharmacy

Refinery

Electroplating

Food industry

Film photofinishing

Scientific research institution

Defense industry and other units of pumping acid

Caustic soda, oil, Rare and precious liquid, Toxic liquid

Volatile liquid

For Circulating water equipment

Pump used for filter equipment.

Company Name*:

Country:

Email*:

Tel:

Message*:

Products

Chemical Pump

Magnetic Drive pump

API Centrifugal Pumps

Contact Us

Tel: +86 13061961560
Fax: +86 13061961560
Email: martin@ghionchion.com
WhatsApp: +86 13061961560
HQ: No. 29, Caicun Road, Economic Development Zone, Jing Xian,Xuancheng,Anhui,China
Factory: No. 29, Caicun Road, Economic Development Zone, Jing Xian,Xuancheng,Anhui,China

Model	Diameter		Capacity （m3/h)	Head ( m)	Motor power (kw)	Voltage (V)	Material
Model	inlet (mm)	Outlet(mm)	Capacity （m3/h)	Head ( m)	Motor power (kw)	Voltage (V)	Material
14CQ-5	14	10	1.2	5	0.12	220/380	stainless steel
16CQB-8	16	12	1.8	8	0.18	220/380
20CQ-12	20	12	3	12	0.37	220/380
25CQ-15	25	20	5.4	15	1.1	380
25CQ-15	32	25	6.5	15	1.1	380
32CQ-25	32	25	4.8	25	1.1	380
40CQ-20	40	32	10	20	2.2	380
40CQ-32	40	32	11.5	32	4	380
50CQ-25	50	40	14.4	25	4	380
50CQ-32	50	40	13.2	32	4	380
50CQ-50	50	32	7.8	50	5.5	380
65CQ-25	65	50	16.8	25	5.5	380
65CQ-32	65	50	25	32	57.5	380
80CQB-32	80	65	50	32	11	380
50CQ-50	80	65	50	50	15	380
100CQ-32	100	80	60	32	15	380
100CQ-50	100	80	60	50	18.5	380

Model	Exterior and installation dimension
Model	A	B	C	D	E	F	G	H	J	a	K	M	N	Screw	P	P1	Q	Q1	∮	∮	Connection method
08CQ-2	63	48	45	55	38	200	105	45	15	84	80	24	16	∮6							Inbutation stylet
10CQ-3	63	48	45	55	38	200	105	45	15	84	80	24	16	∮6
14CQ-5	90	71	95	107	53	270	120	56	16	130	130	37	1	∮7
16CQB-8	90	70	80	125	55	320	160	65	18	115	140	40	22	∮11
20CQ-12	100	80	105	130	59.5	340	160	73	18	130	160	65	26	∮12
25CQ-15	125	100	140	190	67.5	460	205	90		160	240	71.5		∮12	75	65	100	90	12	10	Flange connection
32CQ-15	125	100	140	190	67.5	460	205	90		160	240	71.5		∮12	90	75	120	100	12	10
32CQ-25	125	100	140	190	67.5	460	230	90		160	260	85		∮12	90	75	120	100	12	10
40CQ-20	140	120	155	235	75	545	220	100		180	290	78.5		∮12	100	90	130	120	14	14
40CQ-32	190	140	190	271	80	620	260	112		245	336	91		∮12	100	90	130	120	14	14
50CQ-25	190	140	190	271	80	620	260	112		245	336	91		∮12	110	100	140	130	14	14
50CQ-40	190	140	190	271	80	620	260	112		245	336	91		∮12	110	100	140	130	14	14
65CQ-25	216	140	200	305	90	695	300	132		280	350	91		∮12	130	110	160	140	14	14
65CQ-35	216	140	200	360	76	720	292	120		280	350	90		∮12	130	110	160	140	14	14
80CQB-35	254	210				890		160						∮12					14	14
80CQ-50	254	210				890		160						∮12					14	14
