Refinery and petrochemical industry
Coal industry
Environment protection industry
Power plant
Steel industry
Pipeline booster condition
Hydraulic design：Various hydraulic design can be suitable for great majority conditions.

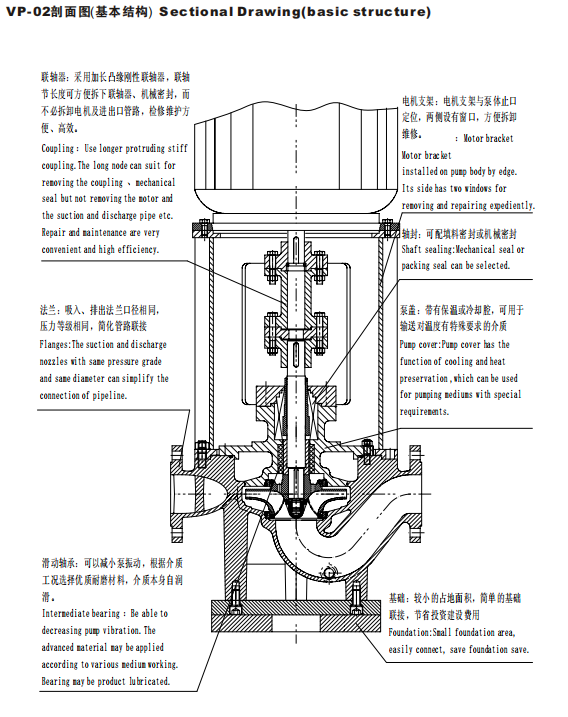

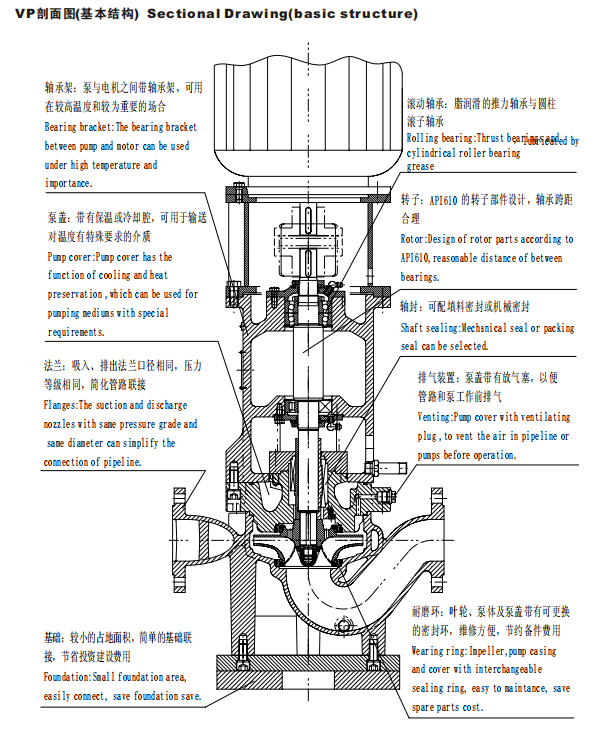

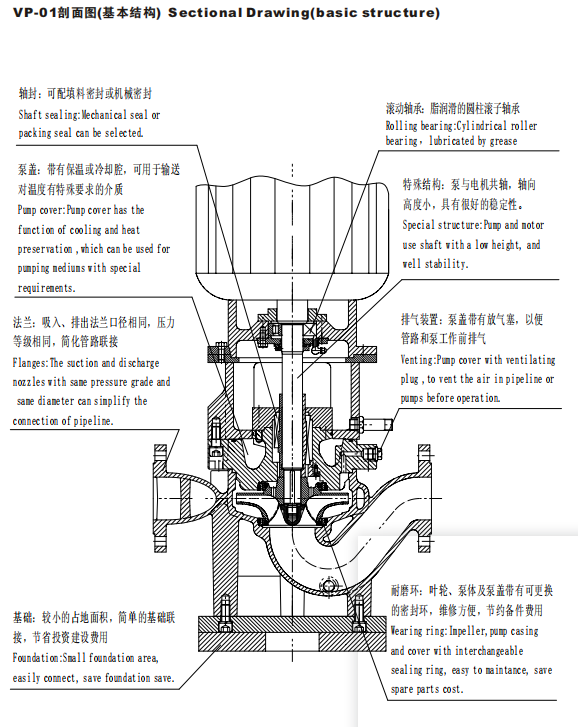

Structure type： The bearing bracket between pump and motor of series VP can be used high temperature and importance. Series VP-01 pump and motor use shaft with a low height, and weill stability. Spacer coupled of series VP-02 pump can be used to expediently dismantle mechanical seals.
Casing： The pump casing is designed with double volute casing to decrease radial force and vibration stable operation.

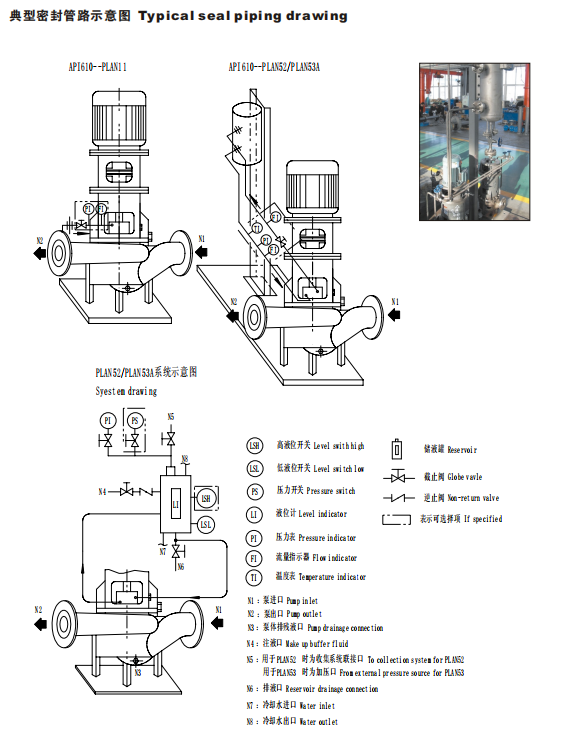

Shaft seal： According to condition, packing, mechanical seal can be selected. The dimension of seal chamber is according with API 682, and single seal, double seal and tandem seal can be selected.
Structure： Compared to horizontal pump with same performance, vertical inline pump cover small foundation area, easily connect, save foundation cost.

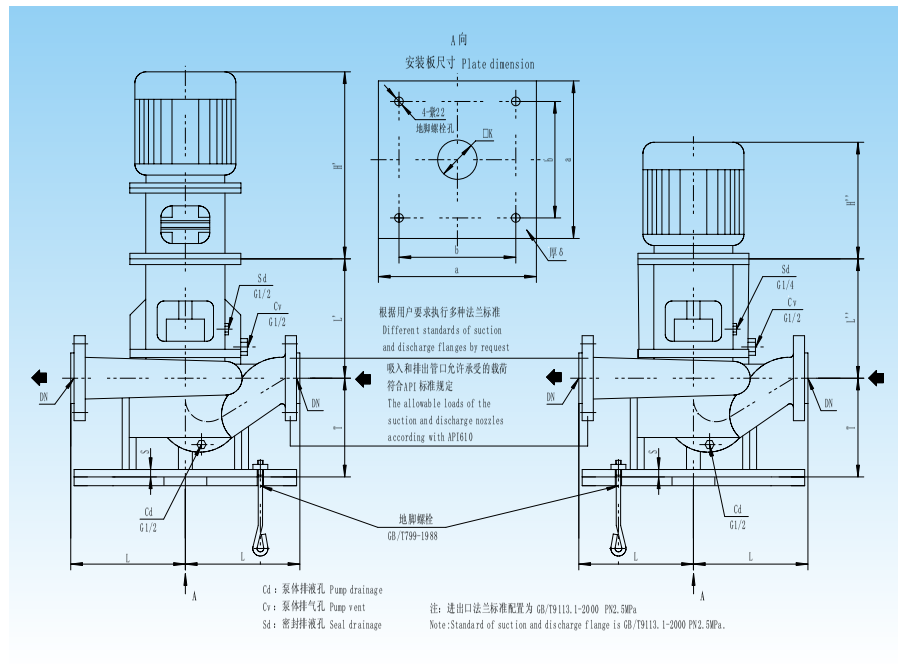

Nozzles： The suction and discharge nozzles with same pressure grade and same diameter are horizontally arranged。Allowable nozzle loadings compile with API610.
Rotation： The rotation direction is clockwise seen from drive end.
API 610 Material Grade：S-5，S-6，C-6，A-7，A-8，D-1，D-2, etc.
Alternative material will also be selected according to liquid.
