Application

Corrosive, pure and contaminated media in the chemical,

Pharmaceutical and petrochemical industries,

In metal processing,

Waste water treatment etc.

When Stainless steel is not sufficiently resistant

Alternatively to expensive Haste alloy, titanium alloy Pumps

When anti-corrosive surfaces are important.

Pumping Liquid

Acid and caustic liquid

Oxidizer corrosive liquids

Difficult-to-seal liquids

Sulfuric acid

Hydroelectric acid

Nitric acid

Acid and lye

Nitro muriatic acid

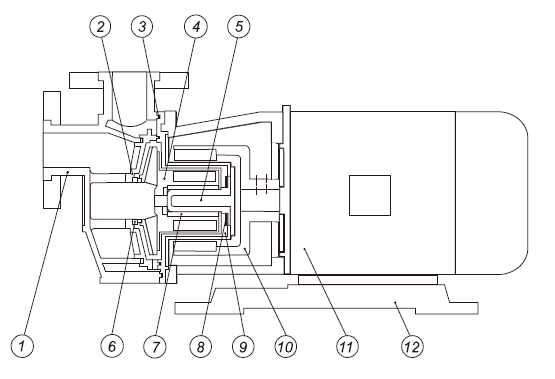

Leak-proof design

-Seal-less Teflon lined magnetic drive pump, driven by magnetic coupling indirectly. Motor shaft and pump chamber are completely sealed, which avoids pump leakage problem and pollution.

-Wetted part material is PTFE fused with FEP, which enables it to transfer both low and high concentration acid, alkali, strong oxidizer and other corrosive liquid.

 -The structure is tight, safe, and energy-saving.
 -Cost-intensive wearing parts are canceled by the seal-less method of construction, which reduces maintenance costs and prolongs its service life.

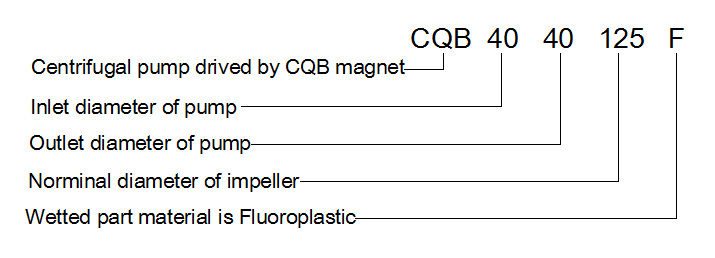

Model Identification

Model and parameters
     Design Pressure: 1.6MPa

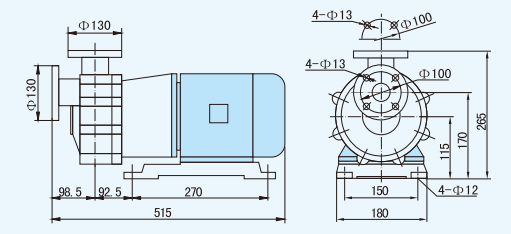

Installation Drawing
