Application
-Chemical and petrochemical industries
-Acids &lyes
-Metal Pickling
-Rare-earth separation
-Agricultural chemicals
-Nonferrous smelting process
-Dyes
-Pharmaceutical
-Pulp & Paper
-Electroplating industry
-Radio Industry
Pumping Liquid
Acid and caustic liquid
Oxidizer corrosive liquids
Difficult-to-seal liquids
Sulfuric acid
Hydroelectric acid
nitric acid
Acid and lye
nitromuriatic acid
Leak-proof design

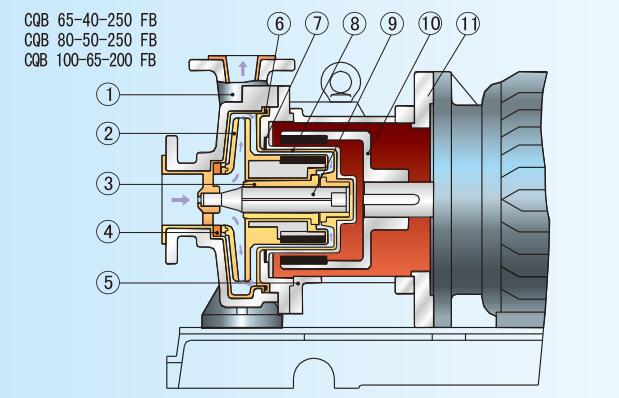

Seal-less Teflon lined magnetic drive pump, driven by magnetic coupling indirectly, motor shaft and pump chamber is completely sealed, avoid pump leakage problem and use site pollution.
Anti-Corrosive
Wetted part material is PTFE fused with FEP, can transfer low and high concentration acid, alkali, strong oxidizer etc corrosive liquid.
Robust pump casing.
The part contacting with liquid material is fluoroplastic, pump casing material is cast iron, and pump casing can bear part of piping and mechanical impact.The structure is tightly, safety, and energy-saving.
Cost-intensive wearing parts are canceled by the seal-less method of construction, therefore, reduced maintenance costs and long service life.
With ductile cast iron casing absorbs all the hydraulic and pipe work-forces. According to DIN/ISO5199/Europump 1979 standard. Comparing to plastic pumps, no expansion joints are required.Flangewith service-minded through holes to DIN;ANSI,BS;JIS. For flushing system and monitoring device as required, the draining nozzle will be offered.
Spacer sleeve made of Carbon-fiber-reinforced plastic [CFRP]
The metal-free system does not induce any eddy currents and thus avoids unnecessary heat generation. Efficiency and operational reliability benefit from this. Even low flow rates or media near their boiling point can therefore be conveyed without the introduction of heat.

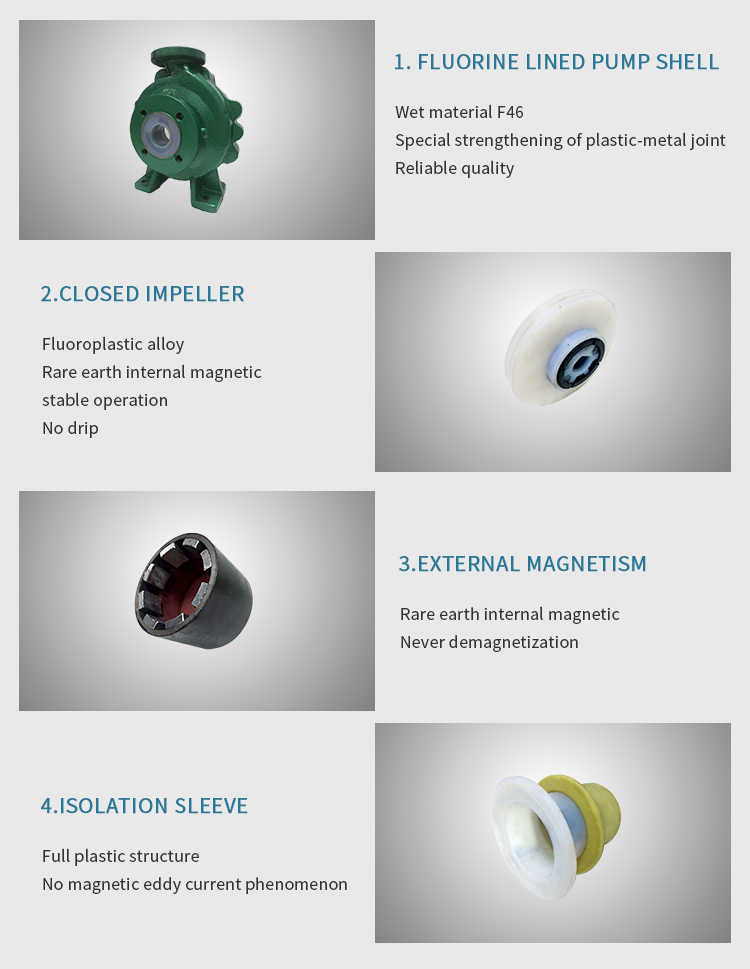

Close Impeller
Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values. The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates .Secured screw connection to the shaft to against loosening if the pump is started up in the wrong direction of rotation or in the case of back-flowing media
