Application

Petrochemicals,

Non-ferrous metal metallurgy,

Pesticide,

Acid and caustics,

Pulp production,

Acid pickling process,

Rare- earth separation,

Galvanization,

Electronics etc

Pumping Liquid

Acids & lyes

Waste water

Chlorine water

Electrolyte

Economic and Reliable Design Features

Multi-function

- Combines excellent features of both sealed centrifugal pump and magnetic pump. It can be widely used in corrosive industry and easy for operation.
- Sealess design and free leakage. Without shaft seal and driving through by magnetic coupling, which avoids leakage.
- Containment shell made of Carbon-fiber-reinforced plastic [CFRP]. With high-strength mechanical property, free from the magnetic eddy current phenomenon.

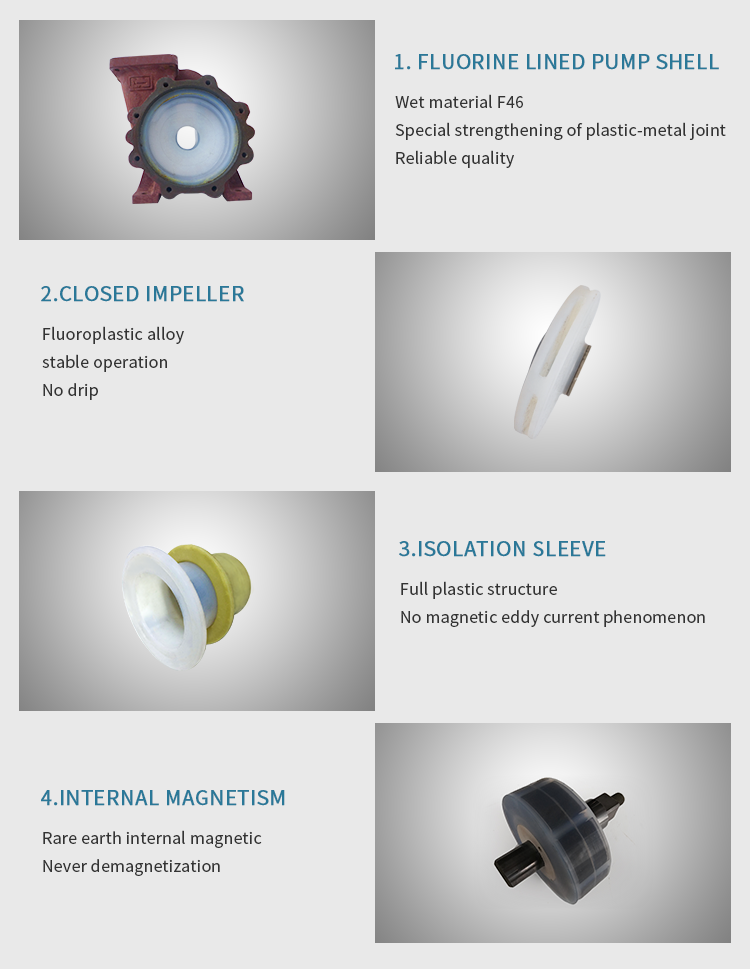

Advantages

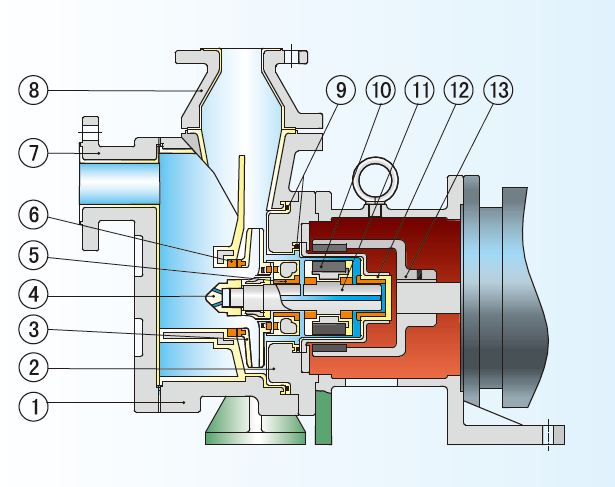

The Pump Housing

. Virgin Fluoroplastic
- Considerably easier and more reliable quality control
- No reduction in the permeation resistance
- Pure pharmaceutical and fine chemical media: no contamination

With ductile cast iron casing absorbs all the hydraulic and pipework-forces. According to DIN/ISO5199/Europump 1979 standard. Comparing to plastic pumps, no expansion joints are required. Flange with service-minded through holes to DIN, ANSI, BS; JIS. For flushing system and monitoring device as required, the draining nozzle will be offered.

Spacer sleeve made of Carbon-fiber-reinforced plastic [CFRP]

-The metal-free system does not induce any eddy currents and thus avoids unnecessary heat generation. Efficiency and operational reliability benefit from this. Even low flow rates or media near their boiling point can therefore be conveyed without the introduction of heat.

Close Impeller

-Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values. The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates. Secured screw connection to the shaft to against loosening if the pump is started up in the wrong direction of rotation or in the case of back-flowing media.

Bearing

The main characteristics of SIC are extreme hardness, high-temperature, anti-corrosion, small expansion coefficient, long service life.

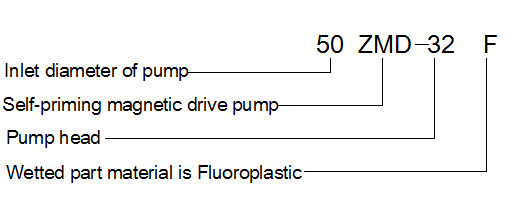

Model Identification

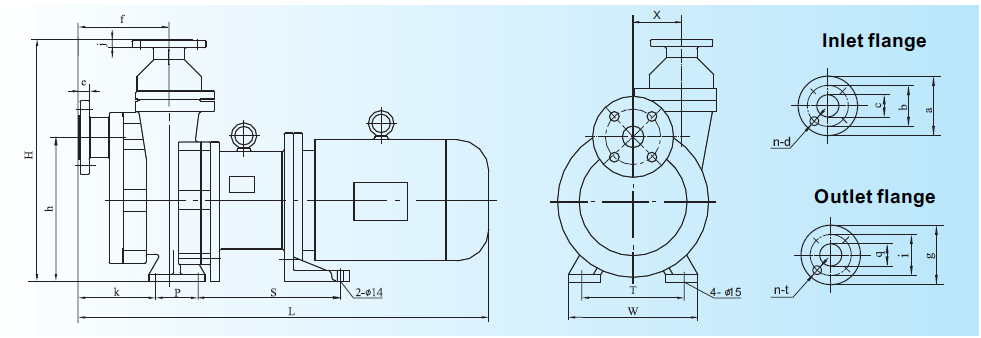

Model and parameter

Note:
-Item marked with”*”for standard parameter
-Please choose similar or same parameter pump, if the parameter is not in the range of this table, we could improve it according to on site application.
