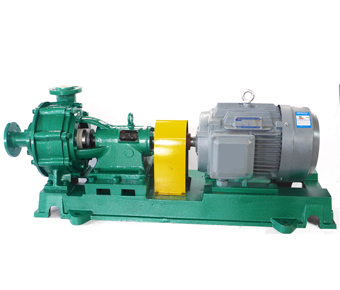

UHB-ZK Slurry Pump

Medium

Acids & lyes
Salt solution
Oils
Beverage
Beer & alcohol
Organic solvent
High corrosion medium
High and low density slurry
Alkene
Waste water

Application

Automobile pickling,
Non-ferrous metal metallurgy,
Caustic soda
Pesticide
Electronics
Papermaking
Rare-earth separation
Pharmaceutical
Pulp production
Sulfuric acid industry
Environmental protection industry

-Corrosion resistance and Friction resistance
-Single stage and single suction centrifugal pump. Wetted part manufactured from the most corrosion- resistant material UHMW-PE to handle your most aggressive chemicals. Pump casing is metal parts, which make pump bearing high pressure.
-
-Robust pump casing With ductile cast iron armouring absorbs all the hydraulic and pipeworkforces to DIN/ISO5199/Europump 1979.In contrast to partially or non-armoured plastic pumps, no expansion joints are required.Flange with service-minded through holes to DIN;ANSI,BS;JIS. For flushing system and monitoring device as required, the draining nozzle will be offered(pump housing picture)
Wide application UHB-ZK can transfer acid and caustic liquid and slurries, also able to handle kinds of corrosive slurries in metallurgy, mining and alkene in sulfuric acid industry and waste water in Environmental protection industry. The material is virgin, unfilled linning UHMWPE， Therefore:（1）Considerably easier and more reliable quality control.(2)No reduction in the permeation resistance.(3) Pure pharmaceutical and fine chemical media: no contamination

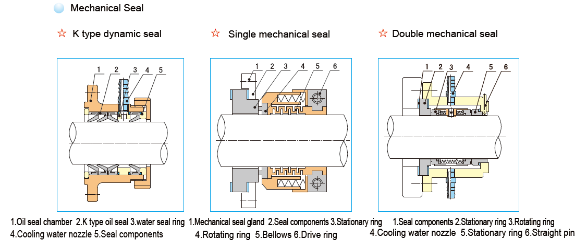

-Multiple mechanical seal
Choose from K type oil seal, single mechanical seal and dual mechanical seal to ensure a perfect assembly for your application. According to temperature and partical content, different type mechanical can been chosen

-With connection joint( lined with polyolefin),the maintenance work can be done without remove the inlet/outlet piping

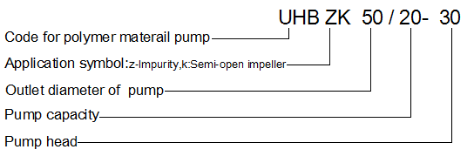

Specification

Table 1: Light duty: 2P Motor Speed=2900RPM Design pressure: 1.6 MPa “*”Standard data

S/N	Model	Flow (m3/h)	Head (m)	Efficiency (%)	NPSHa (m)	Inlet x outlet (mm)	Motor Power (KW)	Pump and motor weight (kg)
1	UHB-ZK40/10-20	5	22	18	3.00	40*32	3.00	100.00
		*10	20	28
		12	18	30
2	UHB-ZK40/10-30	5	32	18	3.00	40*32	4.00	105.00
		*10	30	36
		12	27	30
3	UHB-ZK50/20-20	12	22	30	3.00	50*40	4.00	130.00
		*20	20	37
		25	17	40
4	UHB-ZK50/20-30	12	32	30	3.00	50*40	5.50	150.00
		*20	30	36.5
		25	28	40
5	UHB-ZK65/30-20	20	13	34	3.50	65*50	5.50	150.00
		*30	20	36
		35	18	40
6	UHB-ZK65/30-30	20	32	34	3.50	65*50	7.50	150.00
		*30	30	37
		35	18	40
7	UHB-ZK65/30-50	20	52	30	3.50	65*50	15.00	280.00
		*30	50	35.5
		35	47	38
8	UHB-ZK65/25-80	15	82	35	4.50	65*50	18.50
		*25	80	40
		35	72	40
9	UHB-ZK80/45-35	30	37	33	3.50	80*65	15.00	260.00
		*45	35	40
		55	30	36
10	UHB-ZK80/50-20	35	22	32	4.00	80*65	11.00	250.00
		*50	20	39
		60	17	30
11	UHB-ZK80/50-30	35	32	33	3.50	80*65	15.00	250.00
		*50	30	40
		60	25	36
12	UHB-ZK80/50-50	35	52	33	4.00	80*65	18.50	280.00
		*50	50	41
		60	45	38
13	UHB-ZK80/50-80	35	82	40	5.00	80*65	30.00
		*50	80	50
		60	72	48
14	UHB-ZK100/60-35	50	37	38	4.00	100*80	18.50	345.00
		*60	35	40
		80	30	42
15	UHB-ZK100/60-50	50	52	37	4.00	100*80	22.00	380.00
		*60	50	40
		70	45	42
16	UHB-ZK100/100-40	70	45	41	4.00	100*80	30.00	440.00
		*100	40	40
		110	35	33
17	UHB-ZK100/100-80	65	82	45	5.50	100*80	45.00
		*100	80	55
		120	65	50
18	UHB-ZK125/140-28	70	32	35	5.00	125*100	30.00	400.00
		*140	28	46
		150	22	35
		*400	32	62
		500	26	60

Table 2: Light duty pump, 4P motor, Speed=1450RPM
Design pressure: 1.6MPa

S/N	Model	Flow (m3/h)	Head (m)	Efficiency (%)	NPSHa (m)	Inlet x outlet (mm)	Motor Power (KW)	Pump and motor weight (kg)
19	UHB-ZK150/250-30	120	34	45	4.00	150*125	45.00	840.00
		*250	30	55
		300	26	50
20	UHB-ZK200/400-25	240	28	55	5.50	200*150	75.00	1180.00
		*400	25	64
		500	20	60
21	UHB-ZK200/400-32	240	39	55	5.50	200*150	75.00	1180.00
		*400	32	62
		500	26	60

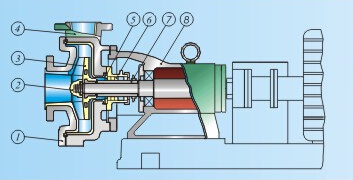

Light duty pump structure, suction diameter <200mm

Item	Designation	Material
1	pump cover	UHMW-PE lined with cast iron HT200
2	Impeller cap	WCB/UHMW-PE
3	Impeller	WCB/UHMW-PE
4	Pump hosing	UHMW-PE lined with cast iron HT200
5	Gasket	UHMW-PE
6	Shast sealing	Fluorubber
7	Shaft sleeve	Silicon nitride
8	Bracket	Cast Iron HT200

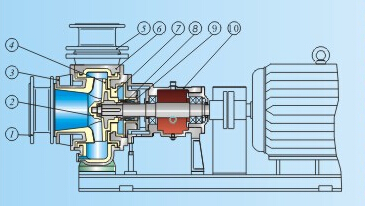

Heavy duty pump Suction diameter≥250mm

Item	Designation	Material
1	Suction connection	PO(propylene epoxide) lined with steel #45
2	Impeller cap	WCB/UHMW-PE
3	Frount impeller cover	UHMW-PE
4	Impeller	WCB/UHMW-PE
5	Dischargge connection	PO(propylene epoxide) lined with steel #45
6	Pump casing	Fluorubber
7	Shaft sleeve	Silicon nitride
8	Bracket	Cast Iron HT200

Several points on structure:
1.Light duty pump structure, suction diameter <200mm
-Bracket structure , Pump casing no base plate, the bracket share a common plate with motor
-Bearing lubrication method: diameter≦125mm, bearing by grease lubrication, bearing housing no additional machine oil required.
Diameter>125mm, bearing by oil lubrication, bearing house need additional machine oil.
2.Heavy duty pumps structure. Suction diameter≥250mm.
-Pump is suspension structure; pump and motor share a common base plate.
-Bearing lubrication method is grease lubrication, bearing house need additional machine oil.
3.UHB-ZK slurry pump can choose from multiple mechanical seal according to different application, normally seal type is K type oil seal.

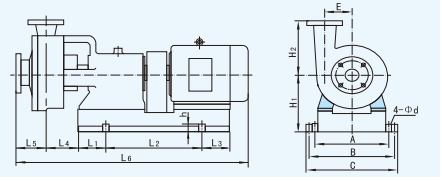

Table 4: Light duty slurry pump installation drawing.

s/N	Model	Outline drawing and installation drawing
		A	B	C	E	H1	H2	L1	L2	L3	L4	L5	L6	h	4-Ød
1	UHB-ZK40/10-20	250	310	340	93	162	167	75	460	75	85	135	905	20	4-Ø14
2	UHB-ZK40/10-30												920
3	UHB-ZK50/20-20	320	340	380	95	212	176.5	175	400	175	90	120	1000	25	4-Ø20
4	UHB-ZK50/20-30											120	1060
5	UHB-ZK65/30-20				125		220				95	120	1070
6	UHB-ZK65/30-30
7	UHB-ZK65/30-50		400	450	125	278	220	150	530	180	110	120	1195	30	4-Ø25
8	UHB-ZK80/45-35											130	1205
9	UHB-ZK80/50-20
10	UHB-ZK80/50-30
11	UHB-ZK80/50-50												1250
12	UHB-ZK100/60-35	385	480	540	130	318	225	188	705	263	115	130	1430
13	UHB-ZK100/60-50												1450
14	UHB-ZK100/100-40												1555
15	UHB-ZK125/140-28	395	485	560	131	308	218	210	670	210	140	164	1556	40	4-Ø30
16	UHB-ZK150/250-30	500	600	660	-225	370	470	250	935	245	95	360	2015	50
17	UHB-ZK200/400-25	510	600	750	-235	395	480	245	1000	340	106	370	2180
18	UHB-ZK200/400-32

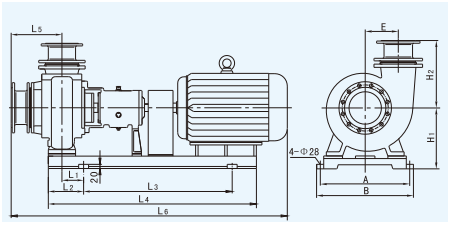

Table 5: Heavy duty slurry pump installation drawings

s/N	Model	Outline drawing and installation drawing
s/N	Model	A	B	E	H1	H2	L1	L2	L3	L4	L5	L6
1	UHB-ZK65/25-80	470	530	145	325	225	165	260	980	1500	275	1685
2	UHB-ZK80/50-80	470	530	155			165	260	980	1500	275	1685
3	UHB-ZK100/100-80	410/560	470/620	150			178	270	1060	1580	280	1730
4	UHB-ZK250/500-32	700	750	255	490	520		285	1200	1900	445	2265
5	UHB-ZK250/600-32			255	490	520						2500
6	UHB-ZK250/600-50			302	545	570						2530
7	UHB-ZK250/800-32			255	490	520
8	UHB-ZK250/800-50			302	545	570
9	UHB-ZK300/1000-32	760	810	300	545	575		300	1300	1985	410	2570
10	UHB-ZK300/1000-50			320	570	600				2080		2800
11	UHB-ZK300/1200-32			300	545	575				1985		2570
12	UHB-ZK300/1200-50			320	570	600				2150		2800
13	UHB-ZK350/1400-32			390	630	650	190	330	1500	2180	425	2830
14	UHB-ZK350/1400-50	960	1010	430	670	700	260	400	100*2	2800		3680
15	UHB-ZK350/1600-32	760	810	390	630	650	190	330	1500	2180		2830
16	UHB-ZK350/1600-50	960	1010	430	670	700	260	400	1000*2	2845		3680
