• Suitable for conveying high temperature and strong abrasive slurry;

• Suitable for large flow, high concentration, high head working conditions;

• It is suitable for conveying mine mud, metal melting explosion sludge, dredger dredging, river dredging and other fields.

• Large diameter and short overhang ensure the rigidity of the shaft, suitable for high power working conditions;

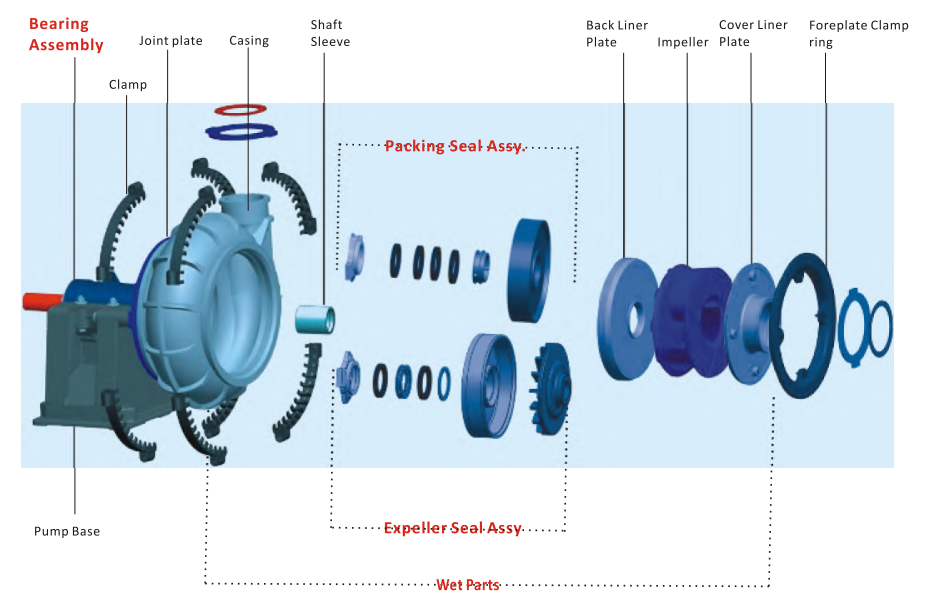

• Secondary vanes in impeller front and back covers relieve seal pressure and minimize recirculation;

• The casing is made of ductile iron, and the ribs help the casing withstand high pressure;

• The wet parts are made of wear-resistant, corrosion-resistant, impact-resistant high-chromium alloy or rubber, which improves the service life of the pump.

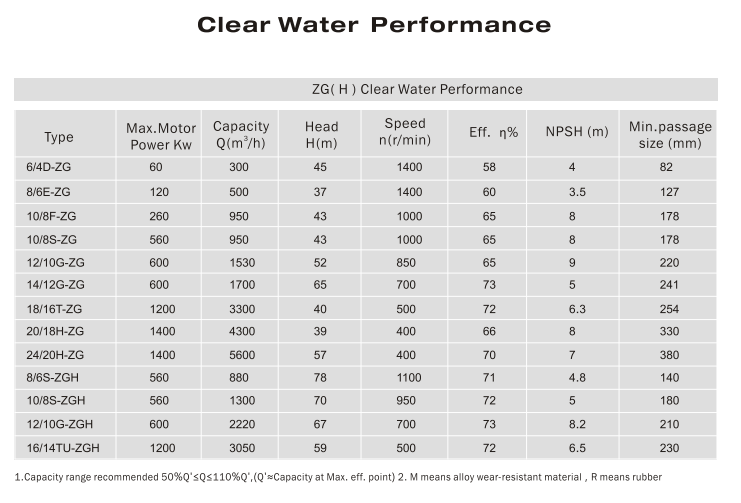

Flow rate: ~5600 m3/h

Head: ~78 m

Speed: 400~1400 r/min

Efficiency: 60%~70%

NPSH: 3.5~8 m

Motor power: 60~1200 KW
